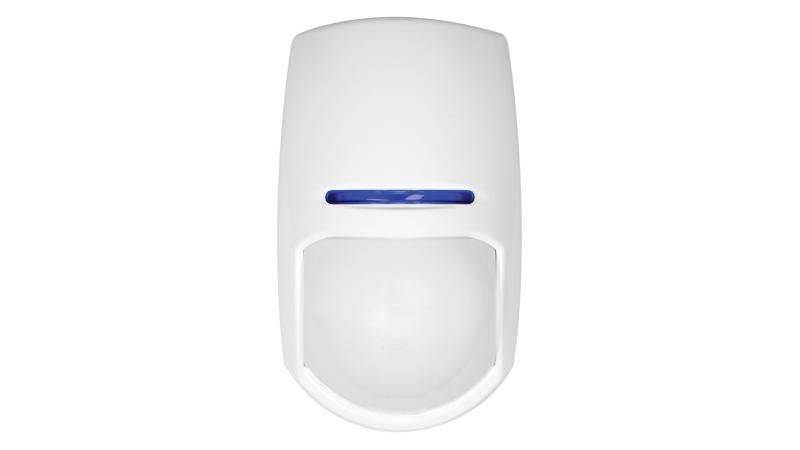

PIR Detector
DS-PD2-P18CE has a long narrow coverage pattern that makes it ideal for protecting shop fronts and large windows. With Bluewave technology, auto sensitivity and digital temperature compensation the DS-PD2- P18CE will keep you protected, automatically adjusting the detector to match the environmental conditions such as infra-red noise, light and temperature.
DS-PD2-P18CE
PIR Detector
- 18m digital curtain detection coverage
- Dual element pyro-electric sensor
- Selectable EOL (End Of Line) resistors
- Auto sensitivity feature
- Digital temperature compensation
- Tamper-proof of front shell
Detection Range
64 (8 On-board zones, max 8 wired PIRCAM)
Detection Speed
0.3m/s ~ 3.0m/s
Power Supply
9-16VDC (12VDC typical)
Operation Temperature
-10℃ ~ +40℃
Dimension(H*W*D)
117mm*69mm*50mm
Weight
125g (without bracket)
Installation Environment
Indoor
Optimum coverage height
2.4 ~ 4m
